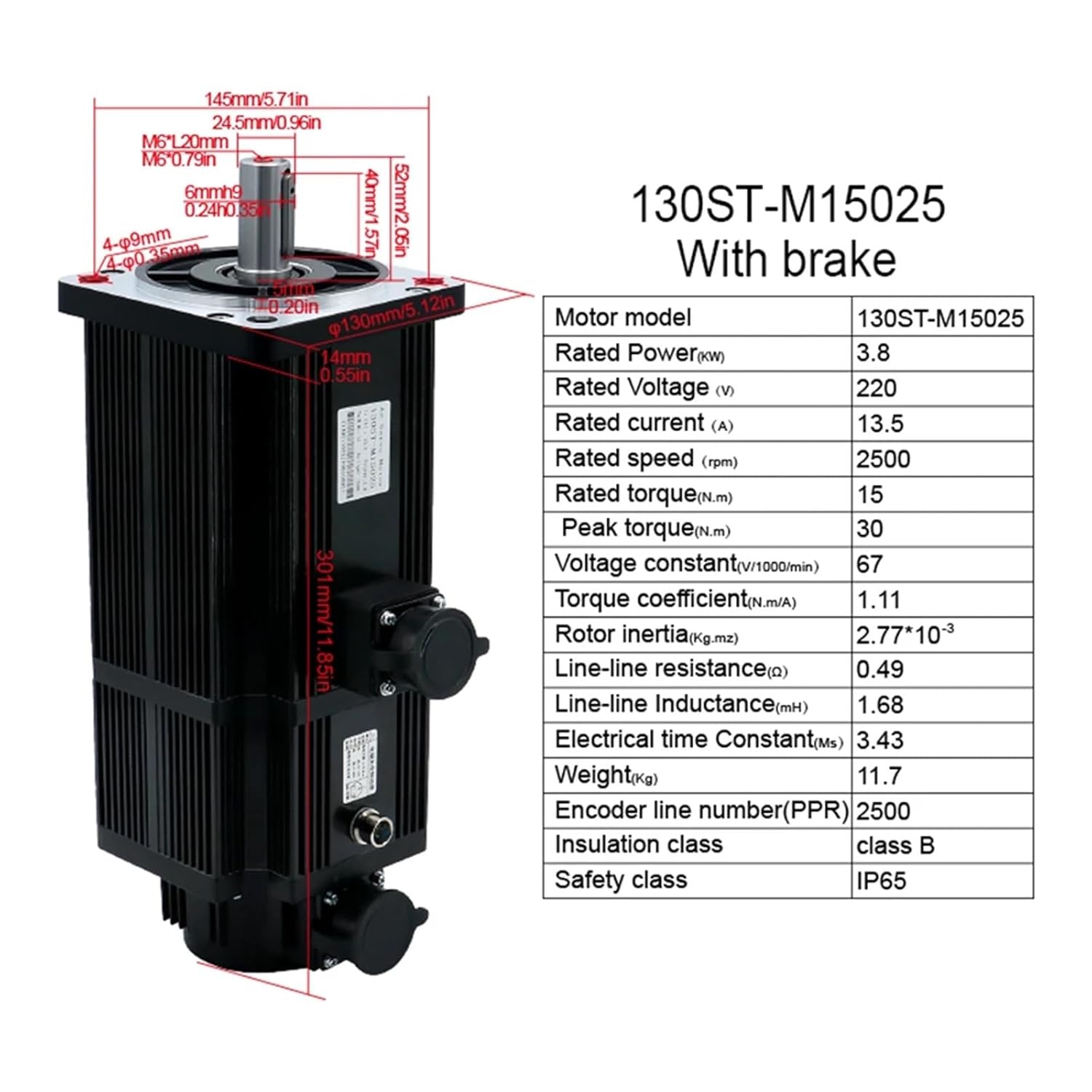

1pc 130ST-M15025 15NM 3.8KW 220 AC 220V 380V servo Motor 2500-5000RPM with RS485 T3DF-L30F-RABF T3A Drive Permanent Magnet(380V with Brake)

Permanent Magnet MotorsPower on settings:Change P-000 to 385 (or 316)Change P-002 to the corresponding motor code (e.g. 80ST-M02430 corresponds to a parameter of 28, please refer to the Specifications and Adapted Motor section in the corresponding driver model manual)Change P-036 to 1 (opposite direction) 0 (positive direction) motor direction conversion parameterChange P-098 to 1 (internal enable) 0 (external enable)The larger the parameter of P-029 electronic gear ratio, the faster the speedLong press the confirm button on E-SEF to display DONE saved successfully. After setting all parameters, power off and restart. overload protection parametersP-065 (internal forward limit 0-300%) Example: Set parameter 300 to represent 300%P-066 (internal reverse limit 0-negative 300%) Example: Parameter set to -300 represents -300%P-070 (Forward overload rate alarm) Example: Setting the parameter to 100 represents P-070 (Reverse overload rate alarm) Example: Parameter set to -100 represents -100%T3D startup settingsChange P-036 to 1 (opposite direction) 0 (positive direction) motor direction conversion parameterChange P-098 to 1 (internal enable) 0 (external enable)The larger the parameter of P-029 electronic gear ratio, the faster the speedLong press the confirm button on E-SEF to display DONE saved successfully. After setting all parameters, power off and restart.==========Hign-concerned Chemical : NonePower Supply : ACModel Number : 130ST-M15025Motor : AC Motorservo motor kits : 130ST-M15025Rated voltage : 220V 380VFrequency : 2500 - 5000 rpmRated Moment : 15NMOutput Power : 3.8(Kw)Matched Motor : 3800W Servo Motors220v DRIVER : T3DF-L30F-RABFmotor shaft : 22mm with 7mm keywayPhase : Single-phaseOutput shaft : 22mmkeyway : 7mmcommunicate : With 485 communication380v DRIVER : T3A-H25F-RABF

• Permanent Magnet Motors
• 1pc 130ST-M15025 15NM 3.8KW 220 AC 220V 380V servo motor 2500-5000RPM with RS485 T3DF-L30F-RABF T3A drive permanent magnet
