5PCS RCWL-0516 Radar Sensor Switch Module Microwave Body Motion Detector Sensor for Arduino Raspberry Pi Human Rat Cat Detector, Detection Distance 5-7m

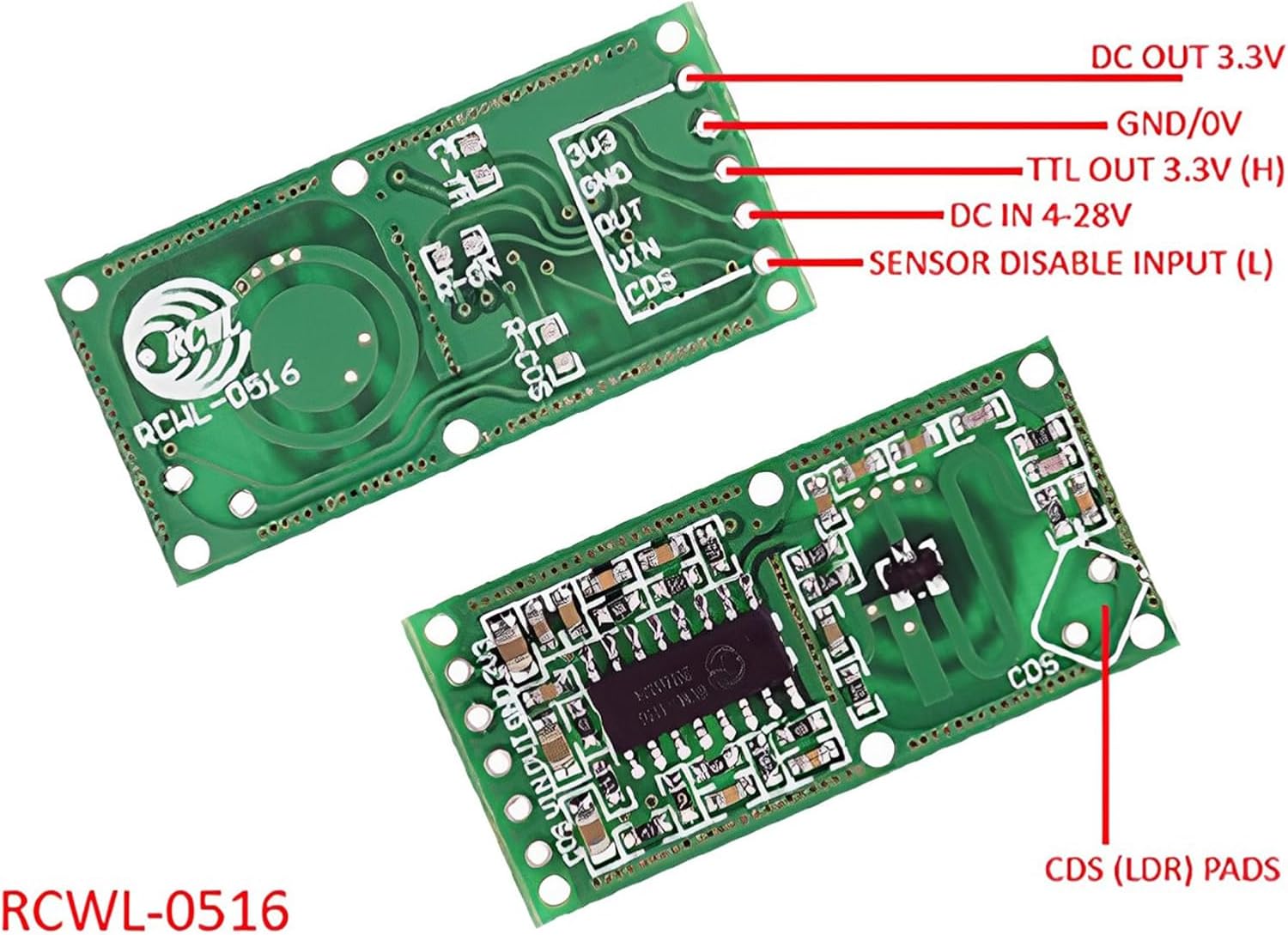

Product description Description: This mini doppler radar motion sensor module is equipped with supporting DC 4-28V wide voltage. It will automatically continuously output the high level TTL signal when there is motion. 360 degree no blind angle detection and maximum 7m sensing distance. It is perfect for DIY microwave motion sensor light switch, human sensor toys, smart security devices, etc. Feature: Operating Voltage: 4-28V Operating Current: 2.8mA (typical); 3mA (max) Detection Distance: 5-7m Transmitting Power: 20mW (typical); 30mW (max) Output Voltage: 3.2-3.4V Output Voltage Driving Capacity: 100mA Trigger Way: repeat trigger Output Control Low Level: 0V Output Control High Level: 3.3V Operating Temperature: -20~80°C Storage Temperature: -40~100°C Size: 35.9 X 17.3mm/1.41 X 0.68inch Pin Function: 3V3: 3.3V regulated output. Max 100mA GND: Ground OUT: Trigger: high (3.3V) if motion detected. 0V normally. VIN: 4 – 28V supply voltage CDS: LDR 10-20k RL, U_LDR > 0.7V = On (Enable control chip) Package Included: 5 X RCWL-0516 Radar Sensor Module 5 X 4P bend pin header Manufacturer Contact Information /

• The RCWL-0516 is a Doppler radar microwave motion sensor. It differs from the HC-SR501 in that it utilizes infrared energy to detect movement, and the RCWL-0516 uses a change in emitted frequency to determine if an object is in its path
• Feature: high sensitivity, induction distance, high reliability, induction Angle is large, and other characteristics. Compared with the traditional infrared feeling PIR, it is widely used in various kinds of human body induction lighting and smart security devices and so on
• Operating Voltage: 4-28V; Output Voltage: 3.2-3.4V. Detection Distance: 5-7m. Size: 35.9 X 17.3mm/1.41 X 0.68inch. OUT--Trigger: high (3.3V) if motion detected. 0V normally
• The RCWL module can detect inert objects; provided the object has sufficient density and volume and is in motion. It will automatically continuously output the high level TTL signal when there is motion. 360 degree no blind angle detection
• What you will get: 5pcs RCWL-0516 Module, 5pcs 4P bend pin header
