67mm Big Bore Cylinder Piston Gasket Top End Rebuild Kit fit for Hon-da CRF230F 2003-2019, SL230 1997~2008, XR230 2003-2008, Replace 12100-KFB-000

➤PRODUCT SPECIFICATION: Item Content: 1x Big Bore Cylinder Block 1x Upgrade Camshaft 1x Modified Roller Silent Rocker Arm 1x Piston Kit 1x Ring Kit 1x Gasket Kit 2x Valve Oil SealsPart Number: Cylinder: 12100-KFB-000 Cylinder Base Gasket: 12191-KCN-020, 12191-KCN-010 Cylinder Head Gasket: 12251-KT0-711 Piston (Std): 13101-KFB-750 Pin, Piston: 13111-440-000 Piston Ring Set (Std): 13011-KFB-305 Circlips, piston (2): 13112-KPS-900 Carb Insulator Gasket: 16214-KPS-902 Application: for SL230 1997~2008for XR230 2003~2008for CRF230F 2003-2019Other Specification : Compression Ratio: 11.9:1 Displacement: 235cc Engine type: 4-Stroke Bore Type: Big Bore Bore diameter: 67mm Stroke: 62.20 mm Pin diameter: 15mm Pin Length: 47mm Cylinder height: 81.5 mm Overview height: 107.5 mm Ring groove: 0.8 x 0.8 x 1.5 Material: Aluminum High Quality-Style Gaskets to Allow for Piston Installation. Engineered and Tested to Exceed Original Equipment Standards and Performance. ➤PRODUCT FEATURES FOR ZuneXino AUTO PARTS : 1. Built to strict quality control standards 100% factory tested 2. Easy Installation，100% Compatible with OEM Parts 3. Mechanically tested prior to leaving the factory ensures optimal performance and enhanced durability. 4. Perfect match for the original car. 5. Protection against vibration and light side forces. 6. Great life cycles. 7. Guaranteed Exact Fit for easy installation. ➤WARM TIPS : 1. Please make sure the compatible car model, and the product in the picture is the same as your own product. 2. Please standardize the installation to ensure that the product can be well adapted to your car.

• 【PART NAME&PART NUMBER】CRF230F Top end kit, CRF230F SL230 XR230 Cylinder Piston Tod End Rebuild Kit, 67mm Top end kit | Cylinder: 12100-KFB-000; Cylinder Base Gasket: 12191-KCN-020, 12191-KCN-010; Cylinder Head Gasket: 12251-KT0-711; Piston (Std): 13101-KFB-750 Pin, Piston: 13111-440-000; Piston Ring Set (Std): 13011-KFB-305; Circlips, piston (2): 13112-KPS-900; Carb Insulator Gasket: 16214-KPS-902 【Piston Pin：15mm】
• 【COMPATIBLE VEHICLE】67mm Cylinder Piston Rings Gaskets Kit Top End Rebuild Kit 235cc for Hon-da CRF230F 2003-2019 | SL230 1997~2008 | XR230 2003-2008 | CRF230M 2009
• 【PREMIUM QUALITY】A Complete Standard Sized Replacement Cylinder Kit, Made of High Quality Aluminum Alloy, The piston ring is nitrided from the surface of the alloy cast iron. Long service life, high reliability, stable performance, and can better meet your needs. All part is tested before shipping
• 【SEALING PERFORMANCE】Our products have good sealing performance to prevent pressure leakage and lubricating oil leakage in the combustion chamber. High-quality piston rings and gaskets provide reliable sealing to ensure proper engine operation and performance

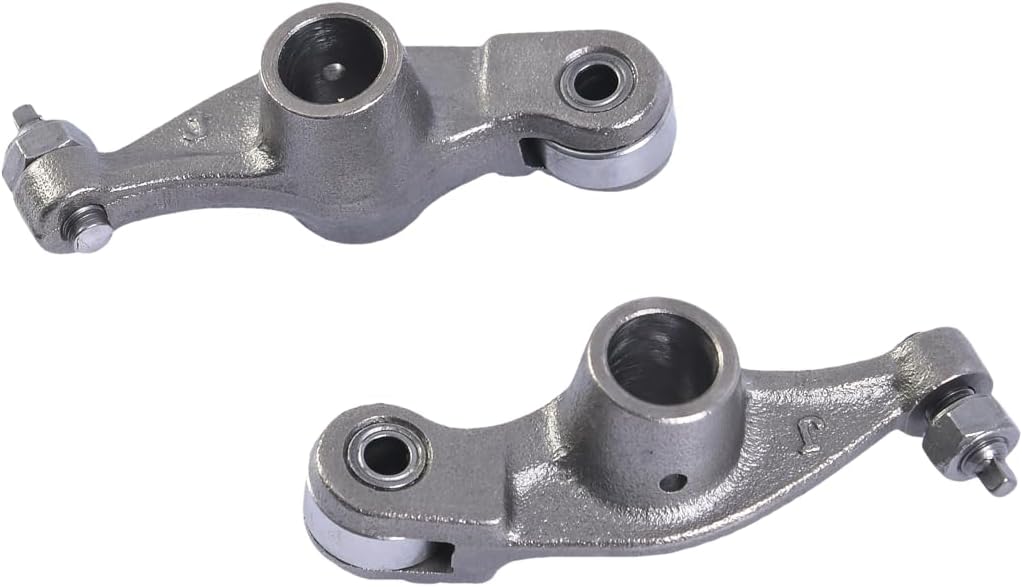

• 【PACKAGE LIST】1x Big Bore Cylinder Block | 1x Upgrade Camshaft | 1x Modified Roller Silent Rocker Arm | 1x Piston Kit | 1x Ring Kit | 1x Gasket Kit | 2x Valve Oil Seals. Easy to install, can help you solve problems in time and meet your use needs.We recommend professional installation when you are not familiar with it
• 【WARM TIPS】Please check picture, OE part number and FITMENT information to verify this is the correct one you need before purchasing
