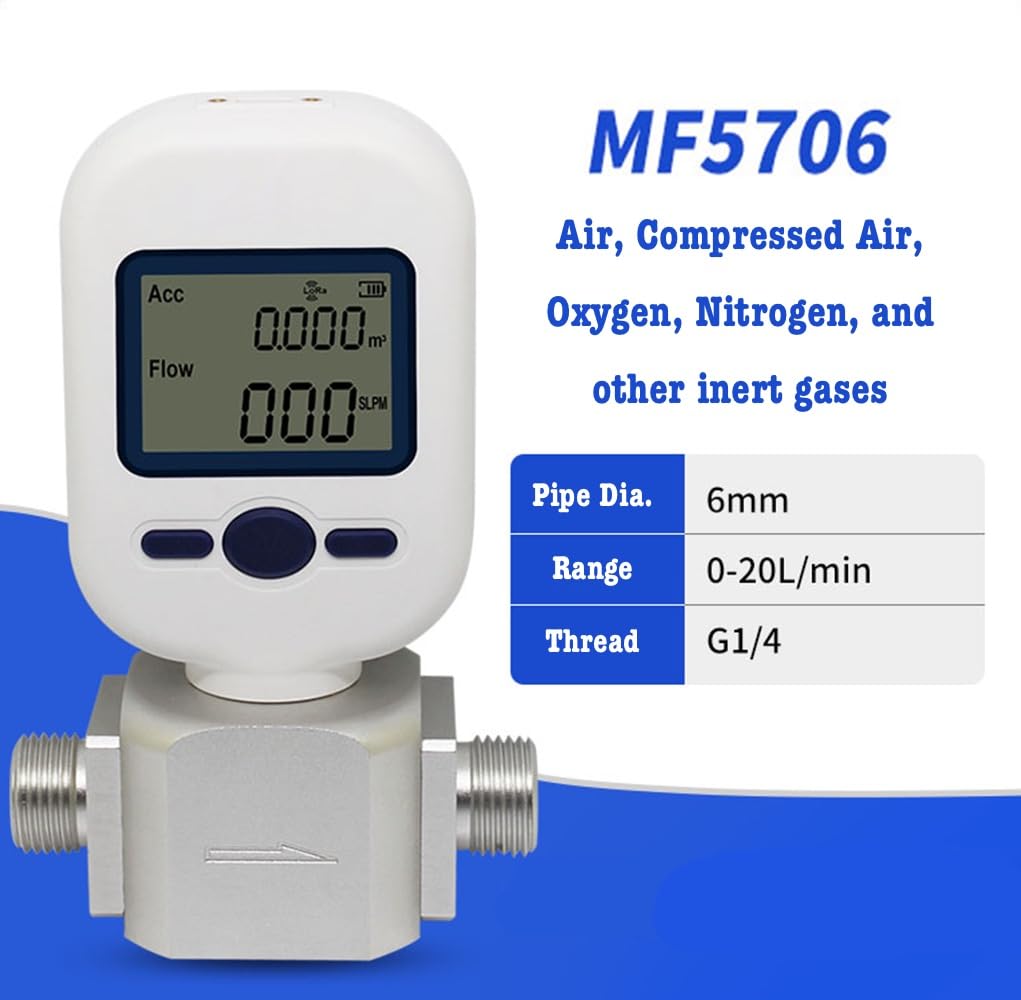

Digital Gas Flow Meter, Nitrogen Flow Meter, Portable Gas Mass Air Flow Meter, Compressed Air and Oxygen Flow Rate Meter Tester, Range 0-20L/min (MF5706)
4.1 (138 items)
Limited Time SaleUS$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211148522 | Release Date | 2026/04/04 | List Price | US$36.00 | Model Number | 211148522 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
SPECIFICATIONModel: MF5706Flow Range: 0-20L/minAccuracy: ±(2.0+0.5FS)%Repeatability: 0.5%Response Time: ≤2secResolution: 0.01L/min (instantaneous flow), 0.001m3 (cumulative flow)Work Pressure Limit: 0.8MPaPressure Loss: ≤600PaStandard Calibration: Air (20℃, 101.325kPa)Pipe Dia.: 6mmMechanical Interface: G 1/4”Protection Rating: IP50Operating Temperature: -10℃~+55℃Storage Temperature: -20℃~+70℃Weight: 0.55 lb.PACKAGE1 x Digital Gas Flow Meter1 x Power Adapter1 x InstructionsMEMS-based gas flow meter boasts a high sensitivity, allowing a very small start flow, used for instantaneous flow testing and flow accumulation calculations, applicable to air, compressed air, oxygen, nitrogen, and other inert gasesCompressed air nitrogen flow meter has a built-in sensing chip for thermal mass flow measurement, no temperature and pressure compensation, ensuring a high accuracyNitrogen air flow meter features an LCD display to show instantaneous flow and cumulative flow at the same time as well as the battery level, 180° rotating for reading from any anglePortable air flow meter has a compact body with G 1/4” thread, easy to set up and install, designed with RS485 communication interfaceNitrogen flow meter allows 2 power supply methods, either powered by mains power or by 4x AA battery (not included)NOTE: To ensure the measurement accuracy of the flow meter, it needs to be preheated for 1min before use.
- MEMS-based gas flow meter boasts a high sensitivity, allowing a very small start flow, used for instantaneous flow testing and flow accumulation calculations, applicable to air, compressed air, oxygen, nitrogen, and other inert gases
- Compressed air nitrogen flow meter has a built-in sensing chip for thermal mass flow measurement, no temperature and pressure compensation, ensuring a high accuracy

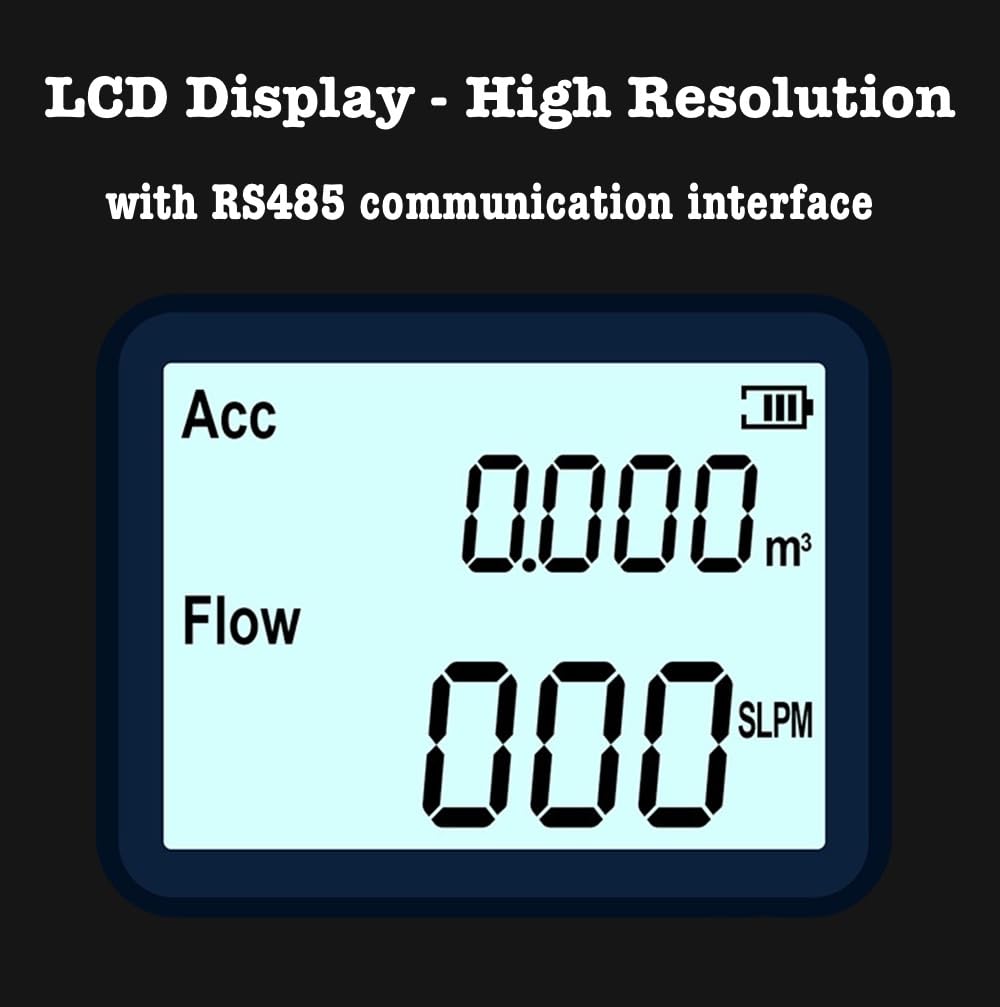

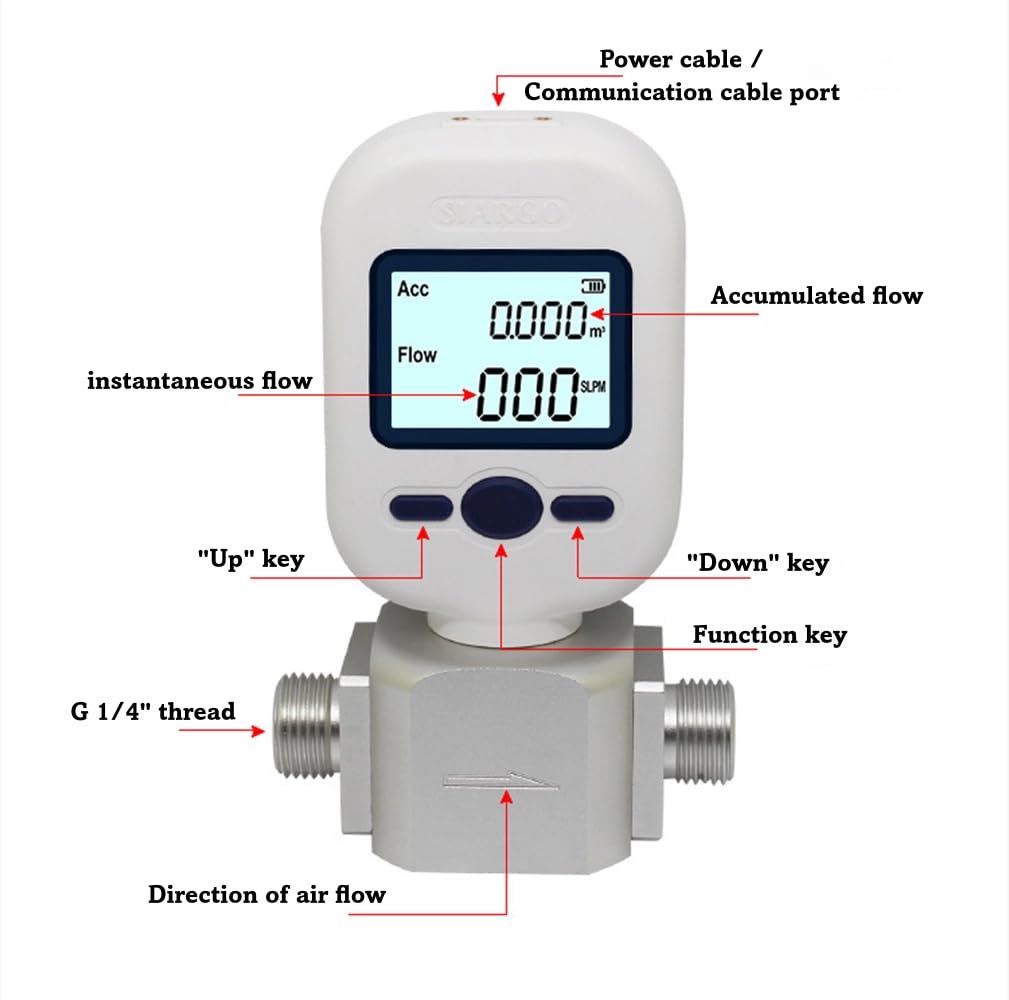

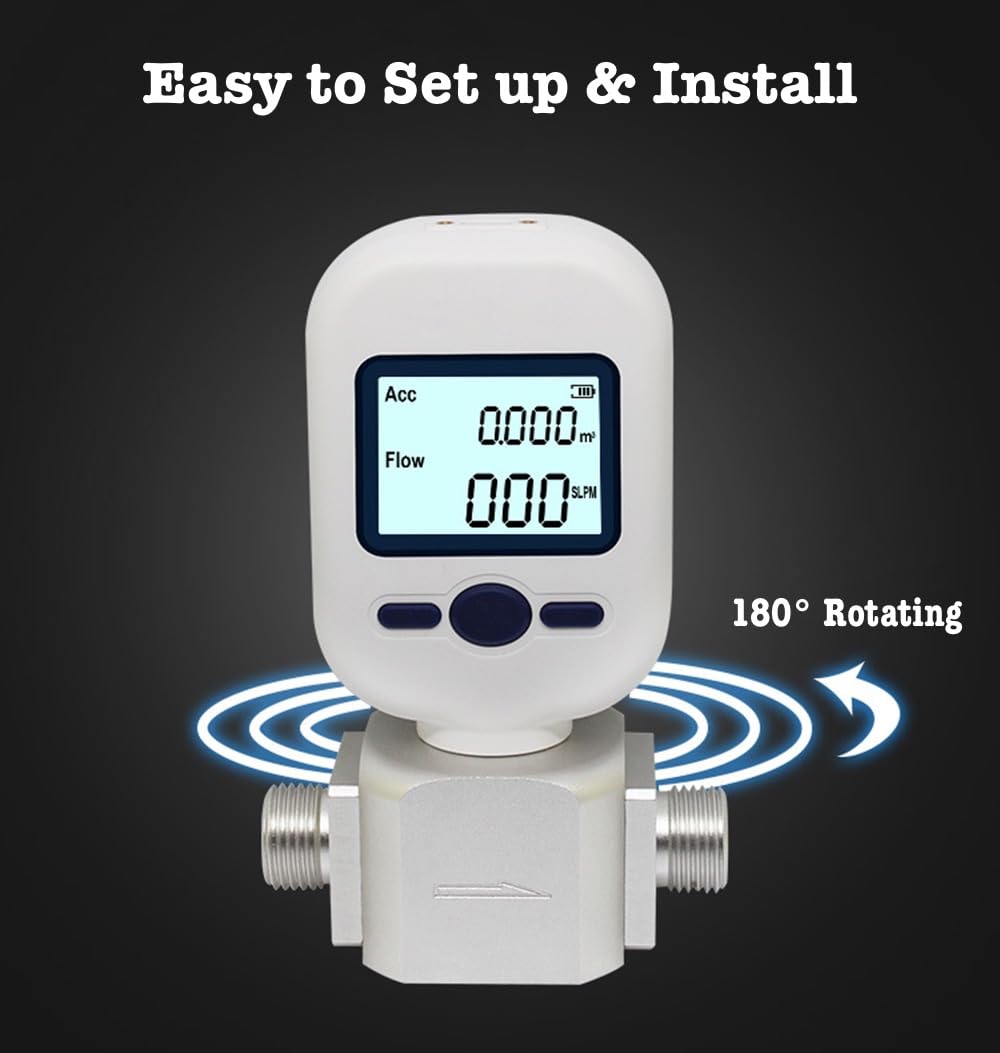

- Nitrogen air flow meter features an LCD display to show instantaneous flow and cumulative flow at the same time as well as the battery level, 180° rotating for reading from any angle
- Portable air flow meter has a compact body with G 1/4” thread, easy to set up and install, designed with RS485 communication interface
- Nitrogen flow meter allows 2 power supply methods, either powered by mains power or by 4x AA battery (not included)
- NOTE: To ensure the measurement accuracy of the flow meter, it needs to be preheated for 1min before use.
| Item Weight | 1.1 pounds |
|---|---|
| Manufacturer | VQP |
| Package Dimensions | 9.3 x 7.5 x 2.2 inches |
