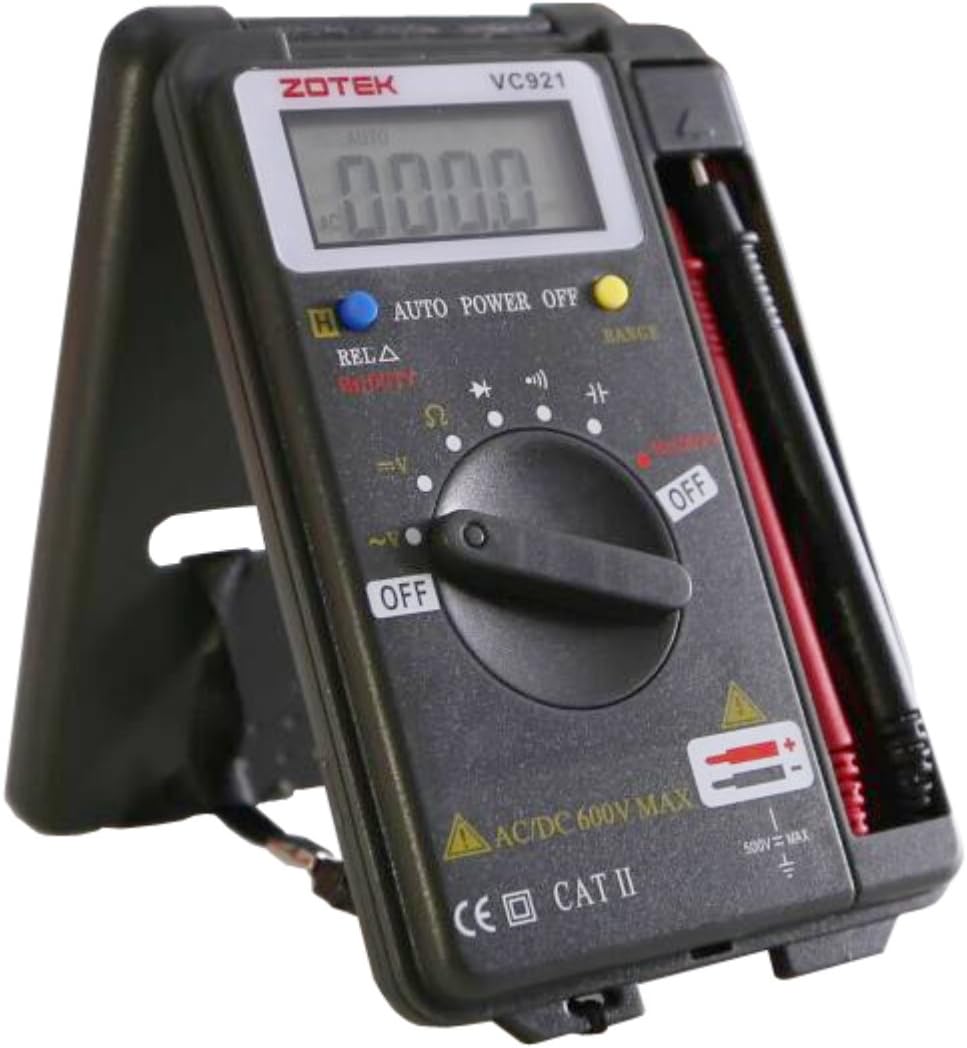

Digital Multimeter, Auto Ranging Pocket Digital Multimeter Digital Multi Tester - AC DC Voltage DC Current Resistance Diodes Capacitance Transistor Measuring Instrument (VC921)

Features ： Auto ranges 550V protection in Resistance、Capacitance and Frequency ranges MAX display 4000 counts Sample rate: 3 times per second Data hold Relative measurement Polarity identification Low voltage indication Auto power off Main measurements：AC/DC Voltage, Resistance，Capacitance Diode and Continuity Testing，Frequency and duty cycle Frequency：1Hz to 10MHz Capacitance :10pF to 4000uF AC volts: 0.1mV to 750V DC volts：0.1mV to 1000V Resistance ：0.1Ω to 40MΩ Duty cycle：1% to 99% Multimeter Specifications ： (1) Capacitance :4nF（±5.0%+4）,40nF（±2.5%+4），400nF/4.000uF/40.00uF/400.0uF/1000uF /4000uF（±3.5%+4） (2) DC volts：400mV/4V/40V(±0.5%+4),400V/600V(±0.8%+4) (3) AC volts: 400mV(±1.5%+4), 4V/40V/400V(±1.2%+4),600V(±1.5%+4) (4) Resistance ：400Ω/4K/40K/400K/4M(±0.8%+4),40MΩ(±2.0%+4) (5) Frequency：99.5/999.5/9.999k/99.99k/999.9k/9.999MHz (±0.08%+2) (9) Duty cycle：0.1% to 99.9%(±0.08%+2) (10) Measurement mode: △Σ mode (11) Over range indication: OL (12) Working environment: 0~40℃, relative humidity <80% (13) Supply power: 3V (1.5V AAA batteries * 2 Pcs) (14) Dimension: 80*120*19millimeter (15) Weight: 126gram (16) Accessories: User’s manual,a pair of test leads, and two 1.5V batteries

• ✔ Palm multimeter, pocket multimeter, compact portable durable， Multimeter Over load protection， Use the PT protection circuit for Resistance and frequency measurement
• ✔ Digital Multimeter Large display makes the reading clear， Durable & Easy Operation，Rotary switch and function buttons can easily find and operate
• ✔ Able to test AC/DC Voltage, AC/DC Current, Resistance, Live Line, Diode,Troide, Capacitance, Frequency and more， Sampling times at about 2~3 times/sec， Maximum display 4000 counts
• ✔ widely reserved in schools, laboratories, factories and any other machining industry.Not only suitable for home users, beginners, maintenance enthusiasts, but also for professional electricians and technicians
• ✔ One Year Warranty ， Risk Free Returns within 30 Days，PM18/18C meets CE, ROHS and en61010-1-2-030 en61010-2-033 standards
