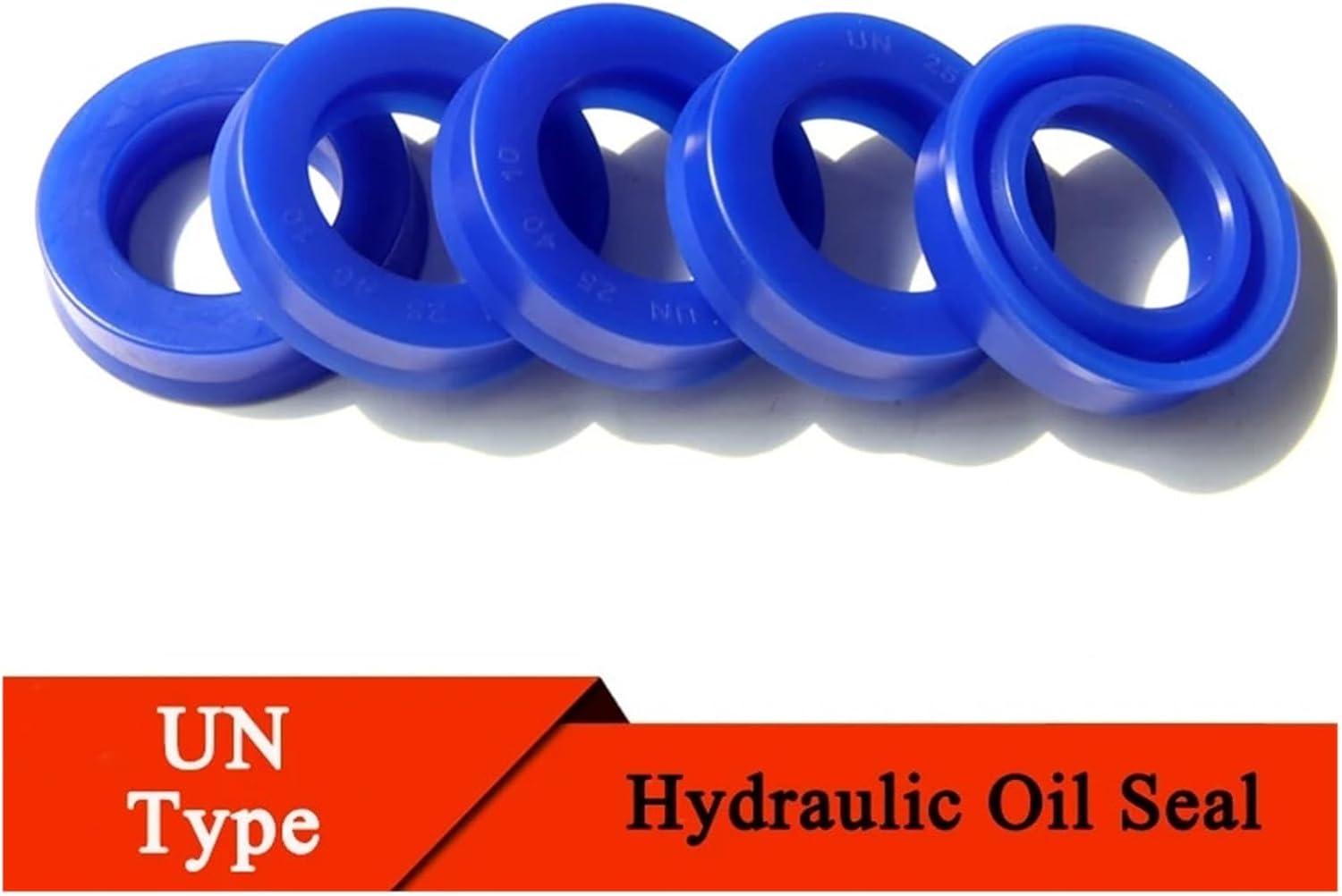

Hardware 5pcs UN Radial Shaft Hydraulic Seal ID 20-30mm Polyurethane Piston Rod PU Single Lip U Cup Oil Seals Packing Washer(24x32x7(5pcs))

Sealing Washers Product Information Name:Hydraulic Oil Seal Material: Polyurethane (PU) Colour: blue. Working speed: Less than 0.5m/s Working pressure: Less than 35 MPa Package: bubble pack/paper box Surface Treatment: Untreated [Advantage]: Widely used in the hydraulic cylinder to prevent the ingress of dust, dirt, sand and metal debris and easy to install. [Application]: Applies to industrial hydraulic cylinders and cylinder hoists moving guide rods and piston rods (pull rods) and pistons (one-way piston seals) in static pressure. (For example: 10*100*1.0 means the inner diameter is 10mm, the outer diameter is 100mm, and the thickness is 1mm). Radial oil seal for rotary shaft A. The inner and outer sealing lip of the type UN oil seal has the same height and a Y-shaped cross-section. Polyurethane (PU) seal offers oil resistance, wear resistance, low temperature resistance, aging resistance, high hardness, elasticity and ease of installation. Advantages: good wear resistance, extrusion and impact resistance. ========== High concern chemical: none Standard or non-standard: Standard Shape: Ring Gasket Model Number: Hydraulic Oil Seal 20-30mm Material: RUBBER Certification: None **Purchase Notes** *Due to manual measurement, please allow 1-3% error and make sure you have no problems when ordering. *Product photos are taken in kind, as the light differs from the screen, so color may vary. The product will be subject to the actual product received.

• Sealing Washers
• Shape: Ring Gasket
• Model Number: Hydraulic Oil Seal 20-30mm
• Material: RUBBER
• Certification: None
