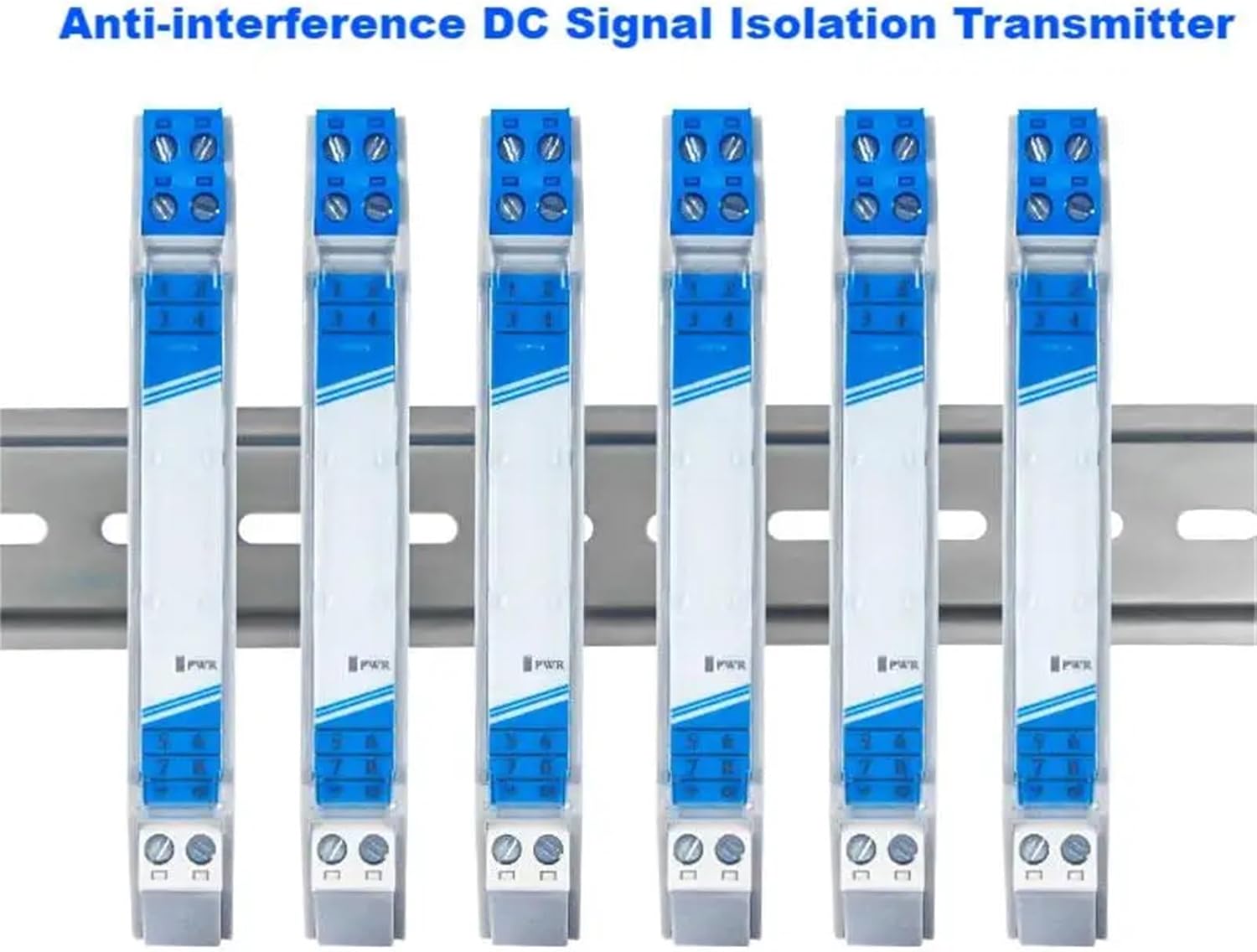

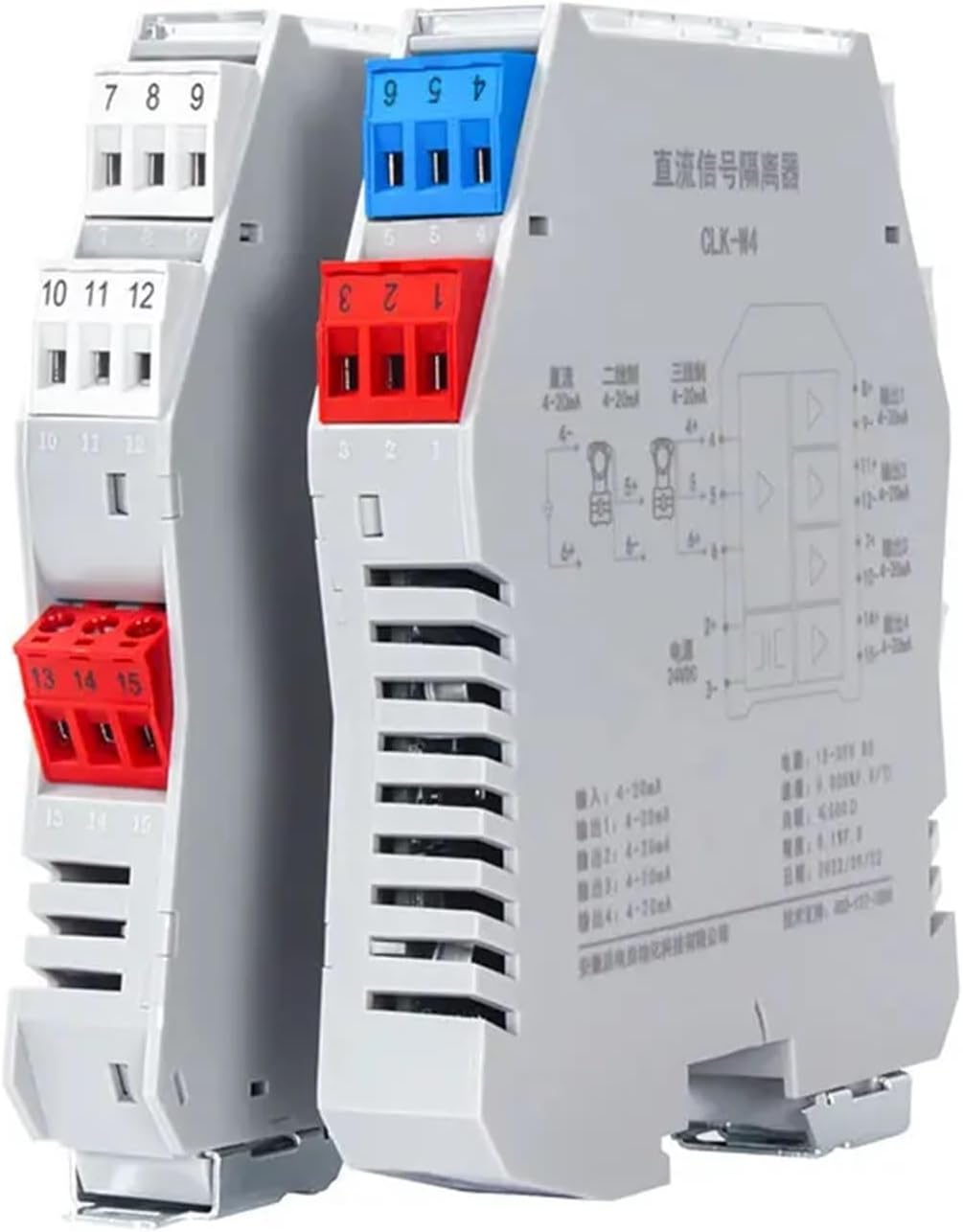

MNEXQML 1PCS Analog Signal Converter 4-20ma to 0-10V 0-5V Signal Isolator 35MM Din Rail Voltage Current Signal Conditioner GLK(2IN2OUT,Output 0-10V_Input 4-20MA_DC24V)

Isolation TransformersNotes: The default power supply is DC24V .Introduction<;1>. GLK intelligent isolated distributor is a high performance distribution isolator. It can be used for isolation, transmission and distribution of output signals of two-wire and three-wire.<;2>. Precisely isolates and distributes 4~20mA,0~10V standard signals and other non-standard signals.<;3>. 3 terminals totally isolated, with good qualities of surge prevention,high accuracy, stronger anti-interference and stronger stability.<;4>. Have the advantage of high precision,high linearity and strong anti-interference.Standard 35mm DIN rail independent==========Hign-concerned Chemical : NoneDimensions : 110*118.9*12.7mmOperating Temperature : -20~+55 CelsiusSupply Voltage : DC24VAccuracy Class : ;0.1%F.S.Model Number : GLKDisplay Type : Analog OnlyDIY Supplies : ELECTRICALProduct name : Analog Signal IsolatorChannels : 1 in 1 out,1 in 2 out, 2 in 2 outInput signal : 4-20mA, 1-5V,0-10V etcOutput signal : 4-20mA, 1-5V,0-10V etcInstallation : 35mm DIN railLinearity : 0.1%Response time : 10ms

• Isolation Transformers
• 1PCS Analog Signal Converter 4-20ma to 0-10V 0-5V Signal Isolator 35MM Din Rail Voltage Current Signal Conditioner GLK
