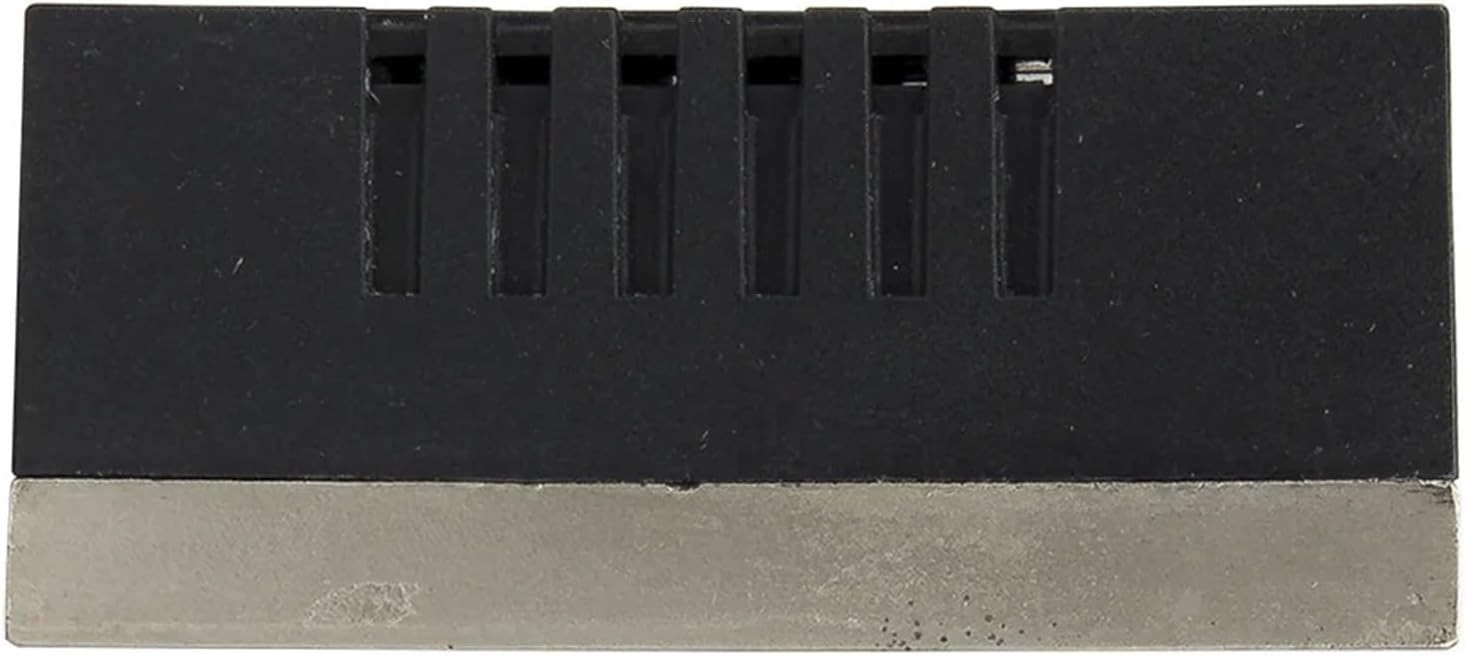

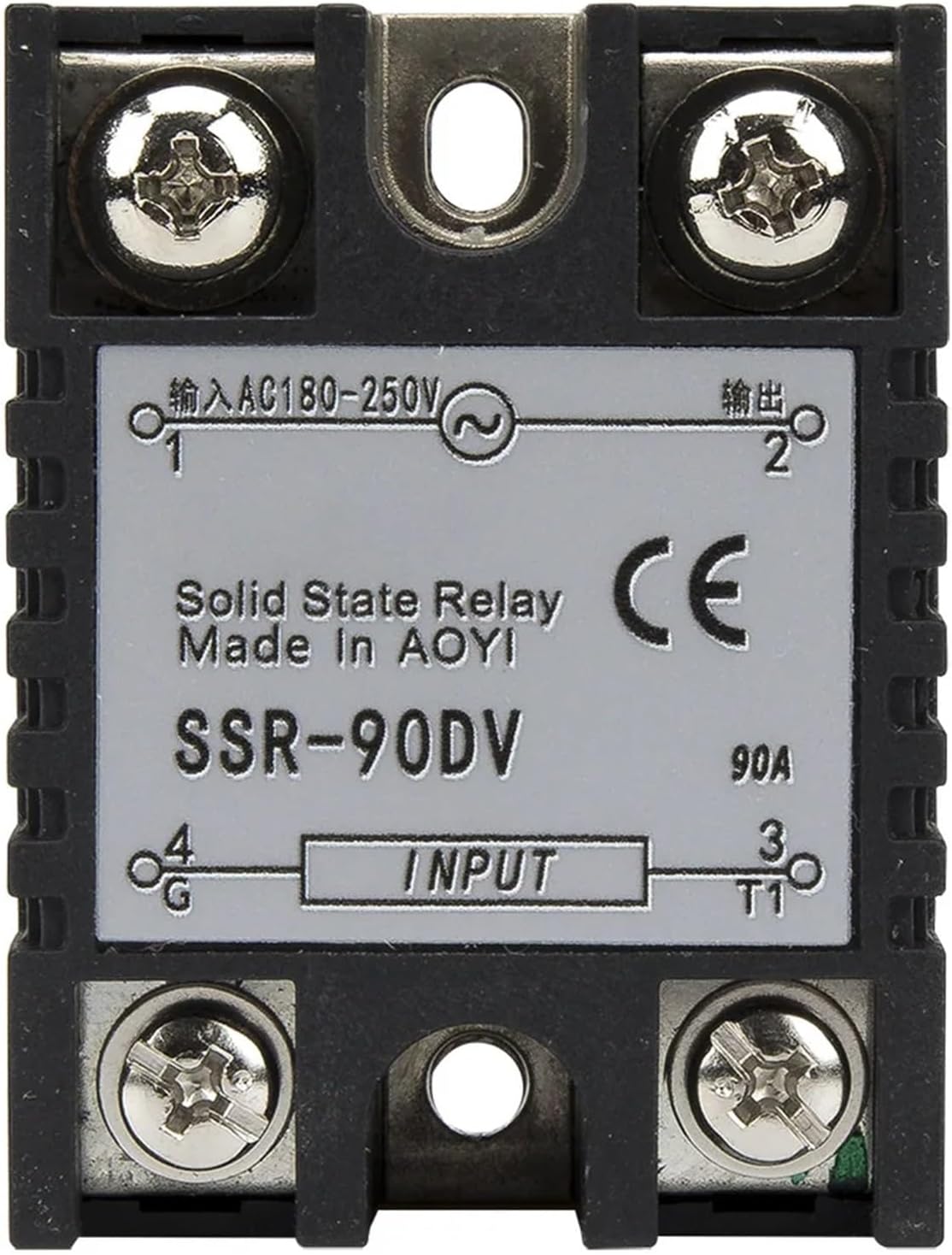

SSR-90DV 90A Solid State Voltage Regulator 90DV SSR Special for SCR

relayRelaySingle phase solid state relay for voltage regulatorModel number and parametersModel numberLoad currentLoad voltageRelated productSSR-10DV10A175-250VACOrderSSR-25DV25A175-250VACOrderSSR-40DV40A175-250VACOrderSSR-60DV60A175-250VACOrderSSR-75DV75A175-250VACOrderSSR-90DV90A175-250VACVisiting...Suitable maximum load powerLoad current (A)102540607590220V resistive load power (KW)1.12.84.46.68.39.9220V inductive load power(KW)0.40.81.31.92.42.9GeneralModel numberSSR-DV seriesRated input control currentVoltage regulator (DC3-25mA)Control typeSCR Voltage regulatorInput-ON indicationLEDOn-state leakage current4mA maxOn-state voltage drop at Imax1.5VacMatched heat sink40A: FHSI01-50 60A: FHSI02-50 120A: FHSI03-100Matchedthermal greaseHZ-KS101Dielectric strength2000VAC 50/60Hz for 1 minuteInsulation resistance500 M min at 500 VDCExternal dimensions62x45x23.5mmTerminalsScrewOperational temperature-20 to 70°COperational humidity95% max no condensationAlias nameSSR-DA series single phase solid state relay for voltage regulatorAdvantage1. Special general circuit design for large current circuit board.2. Use copper terminals for big current increase the safety of connection and use.3. Use pure aluminium base plate with better performance and long life.4. Hign-end flame-retardant PV plastic thermostability can up to 70-80 degrees.Note1. Model selection method: calculate the load current according to load type multiply the balance factor.Resistive load: balance factor is 2 times such as incandescent lamp resistance wire ove
